WS2812B Ring Kit

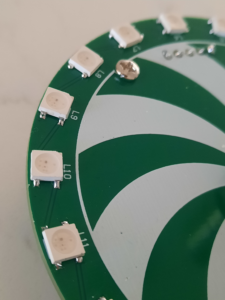

Closeup of the WS2812B SMD LEDS

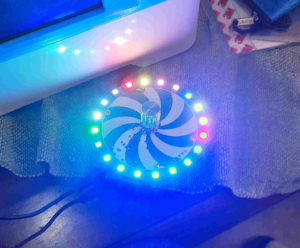

The LEDs are REALLY bright

WS2812B LEDs are digitally addressable RGB LEDs. Each RGB LED comes in a small 5050 package with 4 pins:

  1. Vin
  2. GND
  3. DIN
  4. DOUT

Daisy-chaining is easily done by connecting DOUT to the DIN of the next LED.

You can purchase WS2812B LED’s in strips, matrices or rings. In this particular kit, the LEDs are arranged in a ring. Pressing the button in the middle alternates between different animations. The datasheet is available below

WS2812B datasheetDownload

Animation 1

Animation 2

Another animation
