Lesson 16 – LCD

Introduction

This circuit/program utilizes an LCD to display a greeting message and the number of seconds elapsed after power up.

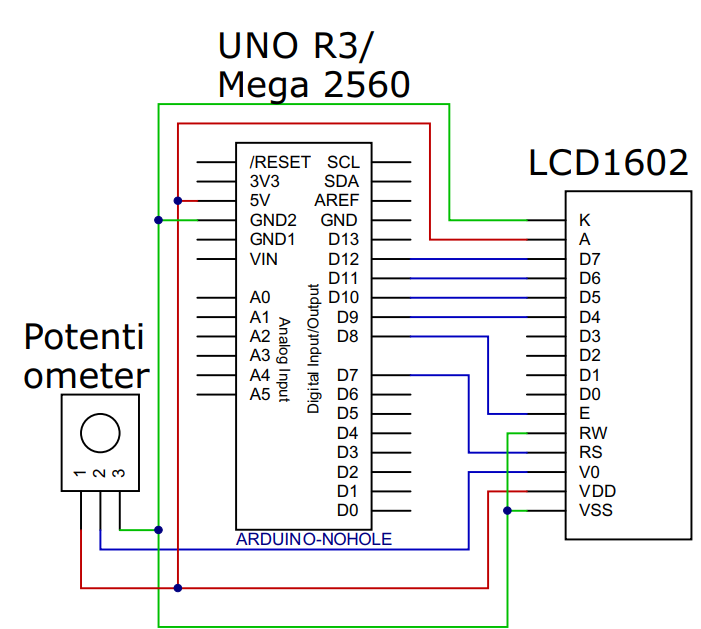

Schematic

Program Description

In the setup() function, it initializes the LCD screen with specified parameters and displays “Hello, UCTRONICS!”.
The loop() function repeatedly updates the second row of the display with the current elapsed time, which is calculated using the millis() function, showing how long the board has been running.
See the flowchart below for more information

Code flowchart
